Product Introduction
Sanwish DC level 3 charger is the latest model of EV charging device. It chargers EV in DC/AC modes and charges up two cars simultaneously. Sanwish DC level 3 charger can dynamically allocated total power to the outputs according to users demands or to the availability of the grid. For example, there are two same cars connected to Sanwish 180kW charger. The charger can dynamically allocated 90kW to each of therm. If one is disconnected, the total power 180kW can be dynamically supplied to the remaining one. This flexibility always ensures availability and high efficiency on all outputs.
Product features
01 Ideal choice for residential, community and commercial EV charging
02 Optional Wired/ Wireless Connection for Back office Management
03 Optional RFID Card Reader For User Identification And Management
04IP 55 Rated For Indoor/Outdoor Applications
05 Firmware Updates Through Remote Connection
06 Charging Interface: SAE J1772 (Type 1)/ IEC 62196-2(Type-2)
07 Dual Ports Charging Stations feature both North American Standards, CHAdeMO and CCS Ports
08 The communication protocol with central management system is in compliance with OCPP 1.6 based on ARM architecture and Linux /Android platform.
Product parameter
| Product Specification | |
|
Model |
SW-DC180-01 |
|
Input voltage |
AC380V±15% |
|
Output voltage |
DC200-1000V |
|
Power factor |
≥0.99 |
|
Output current |
0-400A (maximum output of single gun 250A) |
|
Output power |
180kW |
|
Harmonic content |
≤5% |
|
Voltage range |
≤±0.5% |
|
Insulation resistance |
≥20MΩ |
|
AC leakage protection function |
Yes |
|
Noise |
≤60dB |
|
Product efficiency |
≥95% |
|
Display screen |
7-inch color touch screen |
|
Charging interface |
Double connector |
|
Communication Interface |
Ethernet, 4G (optional) |
|
Charging mode |
Automatically fully charging; Charge by time, by power, by amount |
|
Protection level |
IP55 |
|
Working temperature |
-30℃- +70℃ |
|
Storage temperature |
-40℃- +70℃ |
|
Working humidity |
5%-95%.No condensation |
|
Working altitude |
≤2000m; Derating is required for use above 2000m |
|
Product protection |
Anti-moisture, anti-mildew, anti-salt spray |
|
Charging connector life |
≥10000 times |
|
Billing method |
RFID card tapping/QR code scanning/APP payment (optional) |
|
Backend APP |
Ethernet module/4G module (optional) |
|
Product weight |
≤240KG |
|
Charging cable |
3*95mm²+2*50mm² |
|
Product dimension |
800*600*1700mm |

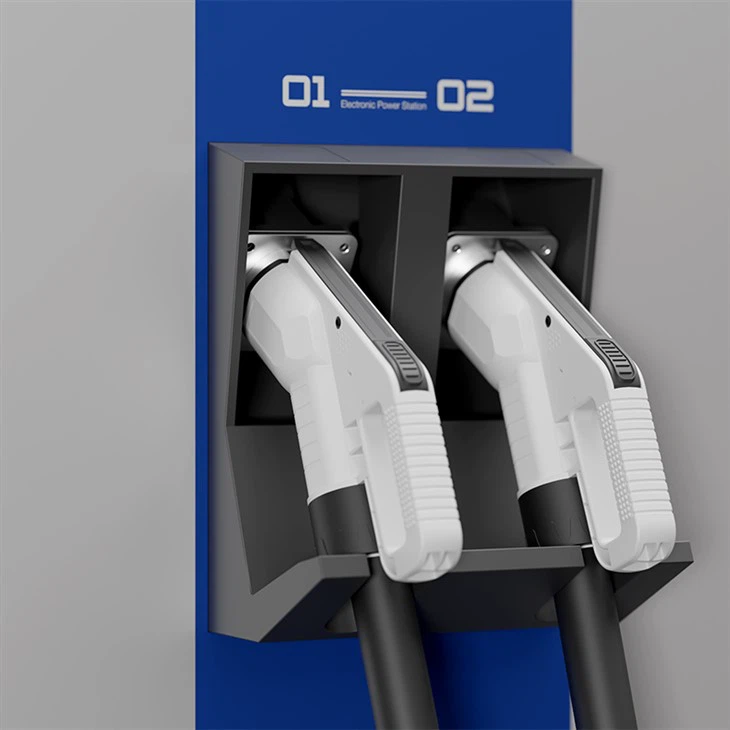

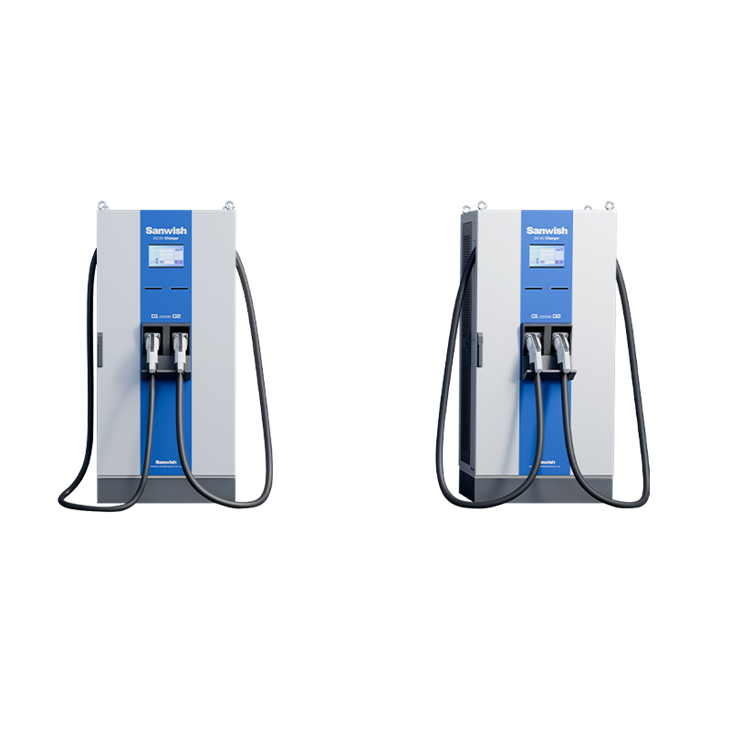

Product Showcase
