Product introduction
Sanwish EV charging station wallbox is suitable for both domestic and commercial. The products have obtained TUV and CE certificates in compliance with EU standards. Sanwish EV charging station wallbox delivers power of 7.2kW, 11kW and 22kW, and there are two installation options: wall-mounted and floor-mounted. There are LED indicators on the surface of the charger cover. High quality production and design standards for safe and reliable use with multiple fault protection. Residual current protection and type 4 electrical enclosure make it no need extra protection from Sunny, Rainy, Snowy and Windy weather.
Product features
01 Sanwish EV charging station wallbox has a unique nice and compact appearance design, and can be customized with different cover colors.
02 Sanwish EV charging station wallbox has overload protection, over voltage protection, under voltage protection, short, circuit protection, over temperature protection, emergency stop and other functions.
03 Can add a RFID module and cards, using card start/stop charging. The card number can customized, and also can add new by customer themself.
04 Easy to install
Sanwish EV charging station wallbox only need to fix with bolts and nuts, and connect the electric wiring according to the manual book.
Product parameter
| Product Specification | |||
| Model | SW-AC72-01 | SW-AC11-01 | SW-AC22-01 |
| Input voltage | 230V AC±10% | 380V AC±10% | 380V AC±10% |
| Output voltage | 230V AC±10% | 380V AC±10% | 380V AC±10% |
| Input current | 32A | 16A | 32A |
| Output current | 32A | 16A | 32A |
| Output power | 7.2kW | 11kW | 22kW |
| Rated frequency | 50Hz | 50Hz | 50Hz |
| Class | I | I | I |
| Leakage current detection | DC 6mA + AC 30mA | DC 6mA + AC 30mA | DC 6mA + AC 30mA |
| Product Properties | |||

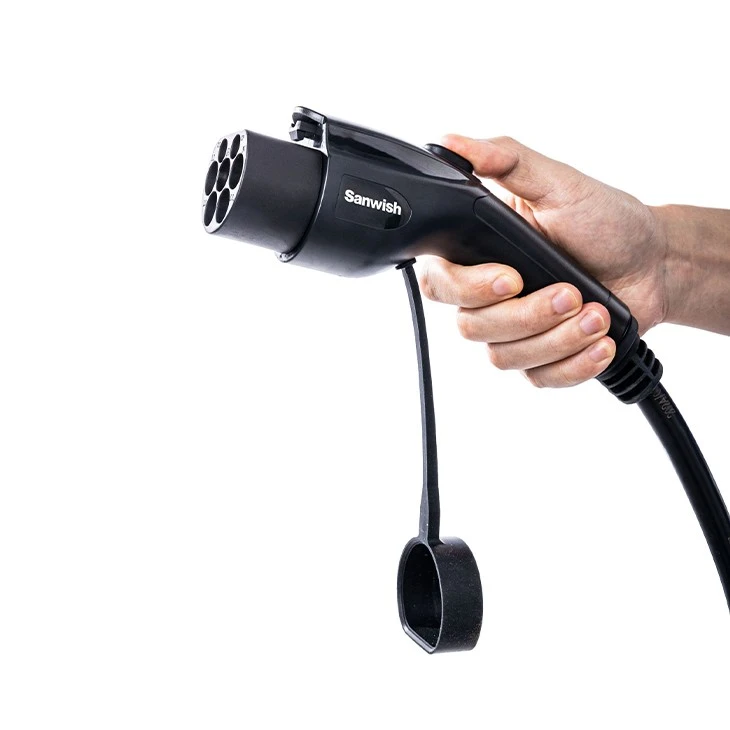

| Charging cable | 3.5m/5m/8m optional length | ||
| Cover material | PC + ASA | ||
| Installation method | Wall-mount / Floor-stand | ||
| Communication Protocol | OCPP 1.6J-SON | ||
| Safety standard | ETSI EN301 489-17 V3.2.4:2020; EN IEC62311:2020; IEC61851-1-2017 | ||
| Product warranty | 2 years | ||
| Application Site | Indoor / Outdoor | ||
| Working temperature | -30℃ ~ +50℃ | ||
| Working humidity | 5%-95%.No condensation | ||
| Atmospheric pressure | 80kPa ~ 101kPa | ||
| Product function | |||
| Network gateway | Bluetooth, WIFI, 4G | ||
| Charging method | Scheduled charging, remote start and stop, plug-and-charge | ||
