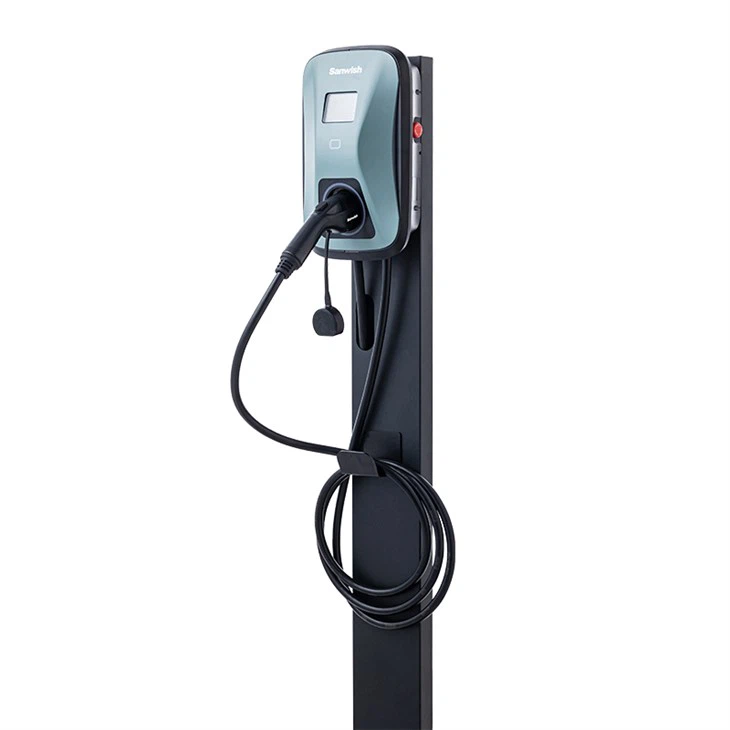

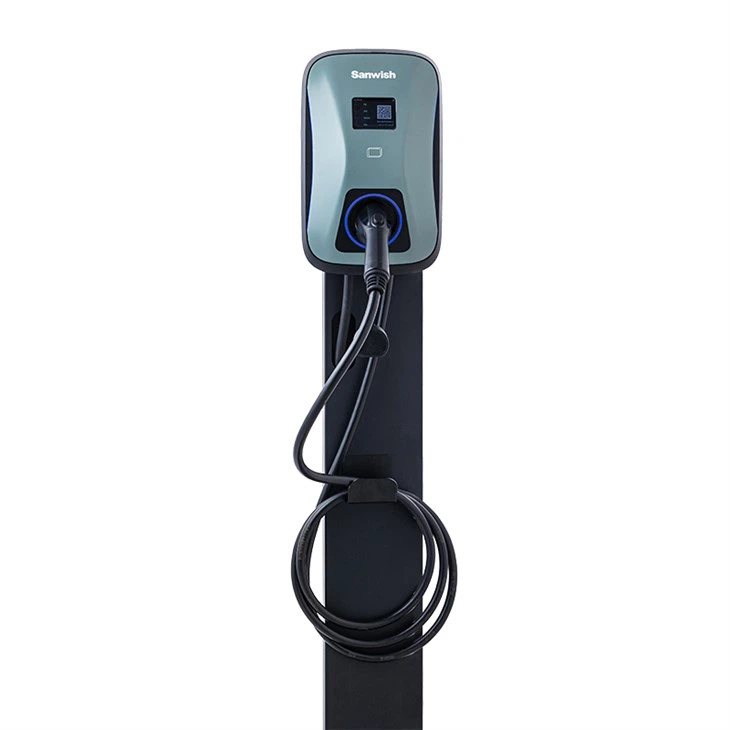

Product Introduction
Sanwish AC EV charging station features Level 2 charging technology. These chargers connect the AC power from the electrical grid to the electric vehicle, and then the OBC converts this power to DC that charges the batteries. With an adjustable capacity from 16A to 32A, depending on the model, Sanwish AC EV charging station can add up to 30-35 miles of range per hour, giving you more time wherever the road takes you. There are a lot of EV currently on the market, and Sanwish can charge them all.
Sanwish AC EV charging station is an intelligent EV Charger with small size, fashion design, and industry leading inner design for top efficiency. Sanwish AC EV charging station is the most reliable and safe EV charger, which is equipped with WIFI and Bluetooth function for better control.
Product features
01 Sanwish AC EV charging station can realize various charging methods, such as card tapping, remote start and Bluetooth start.

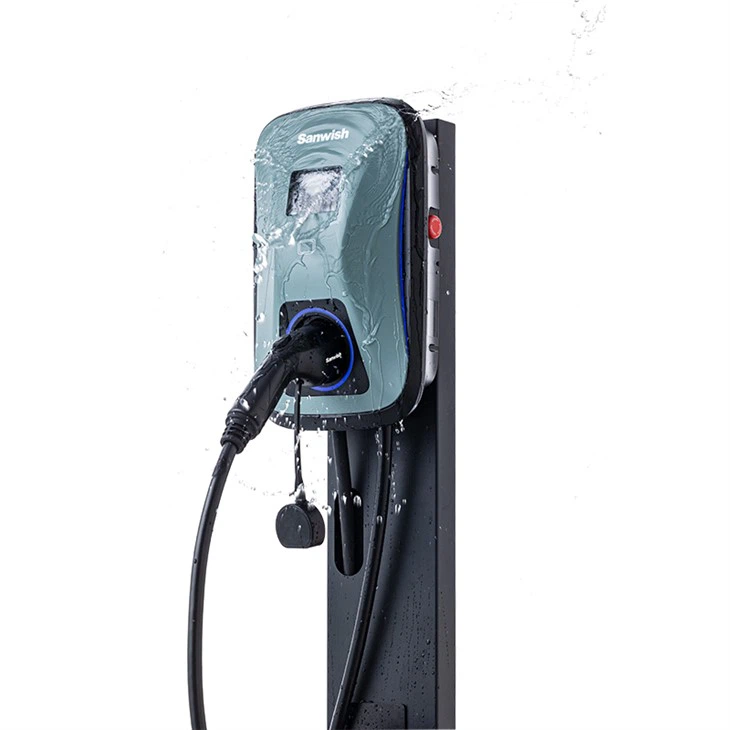

02 Sanwish AC EV charging station has the comprehensive protection functions to avoid various charging safety hazards, such as over-voltage protection, under-voltage protection, over-current protection, over-heating protection, short circuit protection, electrostatic protection, leakage protection, lightning protection, and low-temperature protection. IP54 protection type makes Sanwish product dust-proof and water-proof, and can be installed outdoors safely.
03 Sanwish AC EV charging station is an excellent choice for home use, which is made with durable materials and designed for long-lasting use. It is easy to use and plug in to your EV, and supports both wall mount and column. Its compact design ensures that it takes up minimal space on your wall.
Product parameter
| Product Specification | |||
| Model | SW-AC72-01 | SW-AC11-01 | SW-AC22-01 |
| Input voltage | 230V AC±10% | 380V AC±10% | 380V AC±10% |
| Output voltage | 230V AC±10% | 380V AC±10% | 380V AC±10% |
| Input current | 32A | 16A | 32A |
| Output current | 32A | 16A | 32A |
| Output power | 7.2kW | 11kW | 22kW |
| Rated frequency | 50Hz | 50Hz | 50Hz |
| Class | I | I | I |
| Leakage current detection | DC 6mA + AC 30mA | DC 6mA + AC 30mA | DC 6mA + AC 30mA |
| Product Properties | |||
| Charging cable | 3.5m/5m/8m optional length | ||
| Cover material | PC + ASA | ||
| Installation method | Wall-mount / Floor-stand | ||
| Communication Protocol | OCPP 1.6J-SON | ||
| Safety standard | ETSI EN301 489-17 V3.2.4:2020; EN IEC62311:2020; IEC61851-1-2017 | ||
| Product warranty | 2 years | ||
| Application Site | Indoor / Outdoor | ||
| Working temperature | -30℃ ~ +50℃ | ||
| Working humidity | 5%-95%.No condensation | ||
| Atmospheric pressure | 80kPa ~ 101kPa | ||
| Product function | |||
| Network gateway | Bluetooth, WIFI, 4G | ||
| Charging method | Scheduled charging, remote start and stop, plug-and-charge | ||
Product Showcase
11kW AC type 2 EV charger
22kW AC charger
22kW AC EV charger
AC EV charging station
