Product Introduction
Sanwish DC EV charger home has advanced structure design, and the electrical design adopts AC and DC isolation circuits, which effectively reduces electromagnetic interference and can meet the needs of different power from 120kW to 240kW. Sanwish DC EV charger home is designed with a dual-connector structure, which can meet the charging needs of two vehicles at the same time. Sanwish charger dynamically distributes power according to the needs of the EV, and can meet the needs of various sites.
Product features
01 Sanwish DC EV charger home adopts indicator light with simple status, and the easy-to-read light language allows customers to understand the working status of the EV charger.
02 Complete protection design, with protection mechanisms such as under-voltage protection, over-voltage protection, over-temperature protection, over-current protection, current limiting protection, and power limiting protection.
03 Using air cooling, fans can be flexibly configured according to the number of modules. The fans adopt linear speed regulation, and have the characteristics of low noise and long service life.
04 Sanwish EV charger supports constant power output, and the power module supports hot swapping;
05 The whole machine can be used outdoors, with IP55 waterproof and dust-proof rating, and wide temperature range (-40℃-+50℃).
Product parameter
| Product Specification | |
|
Model |
SW-DC120-01 |
|
Input voltage |
AC380V±15% |
|
Output voltage |
DC200-1000V |
|
Power factor |
≥0.99 |
|
Output current |
0-400A (maximum output of single gun 250A) |
|
Output power |
120kW |
|
Harmonic content |
≤5% |
|
Voltage range |
≤±0.5% |
|
Insulation resistance |
≥20MΩ |
|
AC leakage protection function |
Yes |
|
Noise |
≤60dB |
|
Product efficiency |
≥95% |
|

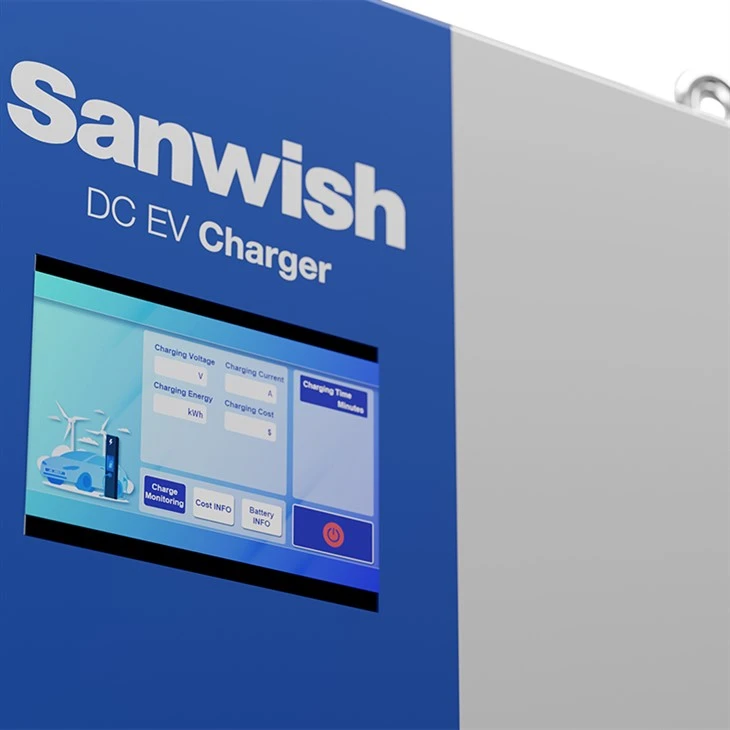

Display screen |
7-inch color touch screen |
|
Charging interface |
Double connector |
|
Communication Interface |
Ethernet, 4G (optional) |
|
Charging mode |
Automatically fully charging; Charge by time, by power, by amount |
|
Protection level |
IP55 |
|
Working temperature |
-30℃- +70℃ |
|
Storage temperature |
-40℃- +70℃ |
|
Working humidity |
5%-95%.No condensation |
|
Working altitude |
≤2000m; Derating is required for use above 2000m |
|
Product protection |
Anti-moisture, anti-mildew, anti-salt spray |
|
Charging connector life |
≥10000 times |
|
Billing method |
RFID card tapping/QR code scanning/APP payment (optional) |
|
Backend APP |
Ethernet module/4G module (optional) |
|
Product weight |
≤240KG |
|
Charging cable |
3*95mm²+2*50mm² |
|
Product dimension |
800*600*1700mm |
