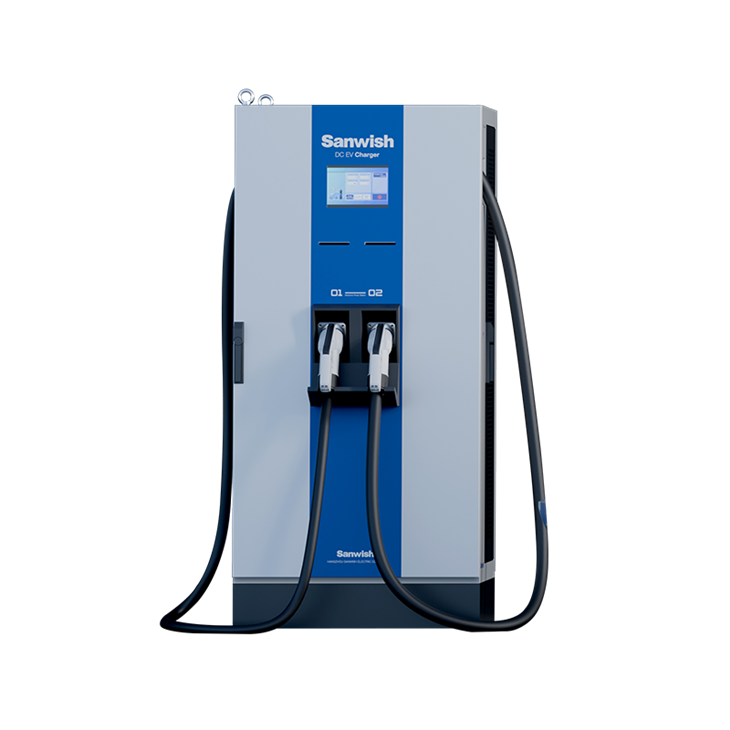

Product Introduction
Sanwish DC electric charging stations are suitable for urban special EV chargers (buses, taxis, official vehicles, sanitation vehicles, logistics vehicles, etc.), urban public charging stations (private cars, commuting cars, buses), intercity highway, etc. In the case of DC fast charging, it is particularly suitable for rapid deployment under limited site conditions.
Product features
The compact, modular design is perfect for retail, highway or fleet use, with power sharing to further optimize utilization. All chargers feature network connectivity for remote services, OCPP enablement and software updates.
1. Smart Communication Protocol
- Communication protocol meets OCPP 1.6J, which has successfully connected with many European operators due to its good compatibility.
- The back office system is equipped with remote upgrading, message duplicating, fault diagnosis, intelligent charging and other functions.
2. Multiple Charging Mode
Totally four charging modes of automatic charging, Start methods of plug and charge, by IC card, by APP and by pressing start button could also be set freely aims to meet different requests of various customers.
3. Perfect Security Protection
- Protect Functions: over voltage, over current, input/output default phase, residual current protection, inverse time limit when motor overload, etc.
Product parameter
| Product Specification | |
|
Model |
SW-DC160-01 |
|
Input voltage |
AC380V±15% |
|
Output voltage |
DC200-1000V |
|
Power factor |
≥0.99 |
|
Output current |
0-400A (maximum output of single gun 250A) |
|
Output power |
160kW |
|
Harmonic content |
≤5% |
|
Voltage range |
≤±0.5% |
|
Insulation resistance |
≥20MΩ |
|
AC leakage protection function |
Yes |
|
Noise |
≤60dB |
|
Product efficiency |
≥95% |
|
Display screen |
7-inch color touch screen |
|
Charging interface |
Double connector |
|
Communication Interface |
Ethernet, 4G (optional) |
|
Charging mode |
Automatically fully charging; Charge by time, by power, by amount |
|
Protection level |
IP55 |
|
Working temperature |
-30℃- +70℃ |
|
Storage temperature |
-40℃- +70℃ |
|
Working humidity |
5%-95%.No condensation |
|
Working altitude |
≤2000m; Derating is required for use above 2000m |
|
Product protection |
Anti-moisture, anti-mildew, anti-salt spray |
|
Charging connector life |
≥10000 times |
|
Billing method |
RFID card tapping/QR code scanning/APP payment (optional) |
|
Backend APP |
Ethernet module/4G module (optional) |
|
Product weight |
≤240KG |
|
Charging cable |
3*95mm²+2*50mm² |
|
Product dimension |
800*600*1700mm |
